Lead-lined doors

A lead-lined door is a laminated door with a central lead sheet lining, custom-built to shield X-ray, CT and other diagnostic rooms from radiation exposure. Alpha Door Solutions manufactures lead-lined doors in Gauteng and serves Western Cape projects through a Cape Town contact, in hinged and sliding configurations, with lead thickness matched to the specific equipment's output, for healthcare projects across South Africa.

Request a QuoteWhatsApp us

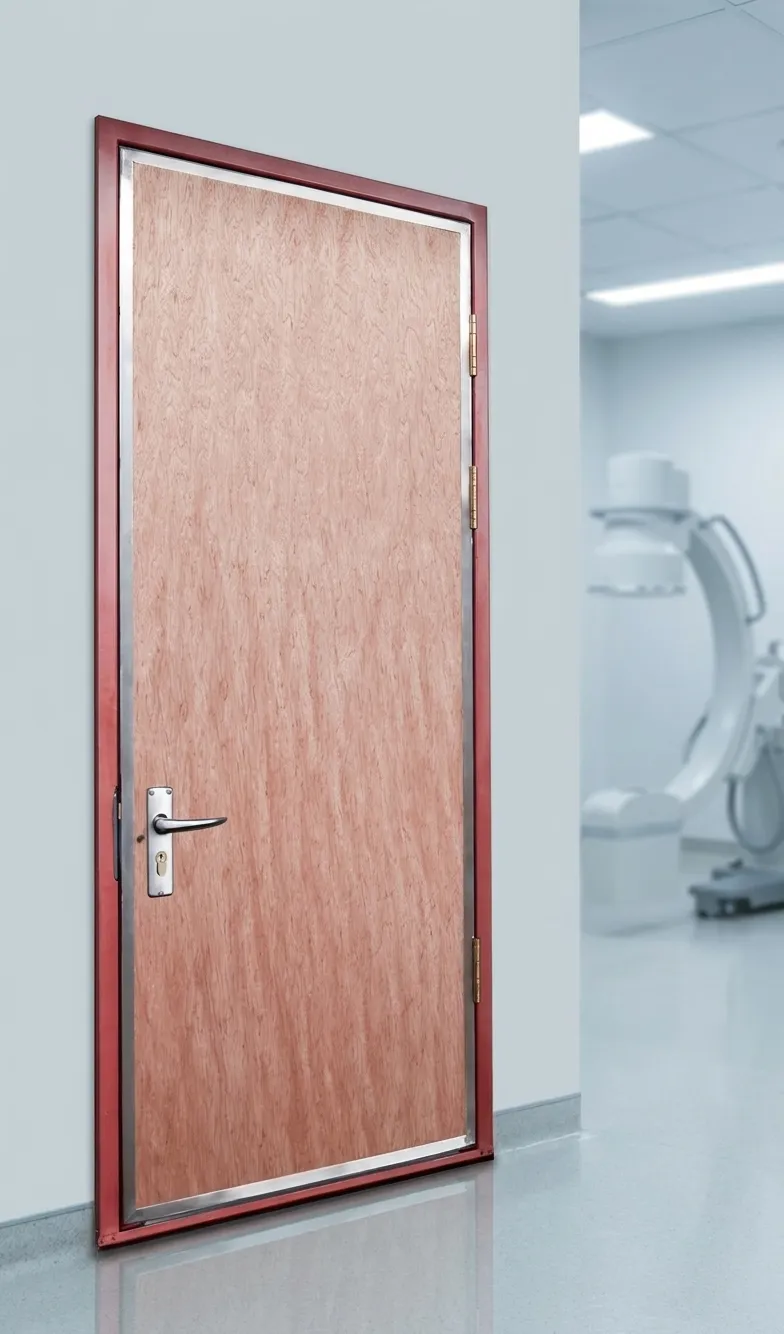

Timber-finish lead-lined door leading into an X-ray room

Overview

Lead-lined doors are laminated door assemblies with a lead sheet positioned centrally within the leaf, custom-designed and manufactured to suit project-specific requirements rather than supplied as a standard size and thickness. The lead thickness required is determined by the radiation exposure levels of the specific X-ray or radiation-producing equipment installed in the room, so lead-lined doors are specified per room, not per building.

Applications

  • Medical X-ray rooms
  • CT scan facilities
  • Hospitals and clinics
  • Diagnostic imaging rooms
  • Doctors' rooms using radiation-producing equipment

Performance

Shielding performance is set by the lead thickness specified for the room, which is calculated against the radiation output of the installed equipment.

Available configurations

  • Hinged lead-lined doors — standard swing configuration for room entrances
  • Sliding lead-lined doors — for openings where a swing door isn't practical

Both configurations can include a lead-impregnated glass vision panel, framed in 1.6mm mild steel, in custom sizes to suit the room layout.

Certifications and compliance

Alpha's lead-lined doors are manufactured to suit SABS and SANS industrial safety regulations.

Related solutions

Technical specifications

ConstructionLaminated door with centrally located lead sheet lining
Lead thicknessDetermined per project, by radiation exposure levels of the installed equipment
Glazing optionLead-impregnated glass (lead-equivalent), custom sizes
Glazing frame1.6mm mild steel frame for glass panels
ConfigurationsHinged; sliding
SizingCustom, to project-specific requirements

Downloads

  • DatasheetAvailable on request
  • Installation guideAvailable on request
  • CAD drawingsAvailable on request

FAQs

Frequently asked questions

  • How is the lead thickness for a lead-lined door determined?

    Lead thickness is calculated per room, based on the radiation exposure levels of the specific X-ray, CT or other radiation-producing equipment installed. This is typically confirmed in consultation with the project’s medical physicist — involve Alpha early in specification so the door can be built to the confirmed requirement.

  • Can a lead-lined door include a vision panel?

    Yes. Lead-lined doors can be fitted with a lead-impregnated glass panel, equivalent in shielding to the door leaf, framed in 1.6mm mild steel and sized to suit the room layout.

  • Are lead-lined doors available in sliding configurations?

    Yes. Alpha manufactures lead-lined doors in both hinged and sliding configurations, so the shielding requirement can be met even where a swing door isn’t practical for the room layout.

  • Do you supply lead-lined doors in Johannesburg and Pretoria?

    Yes. Alpha manufactures lead-lined doors in Gauteng and supplies healthcare projects across Johannesburg, Pretoria and the wider Gauteng region, with supply available nationally for suitable projects.

  • Do you supply lead-lined doors in Cape Town and the Western Cape?

    Yes. Alpha manufactures lead-lined doors in Gauteng and serves Western Cape healthcare projects through a Cape Town contact. See Contact for details.

  • What information do you need to quote a lead-lined door?

    The radiation-producing equipment’s specification (to calculate required lead thickness), the room’s opening dimensions, and whether a vision panel is required. See Contact to start an enquiry — involving Alpha alongside your medical physicist early avoids rework later.
